Procuring a test system for modern electric motors remains a highly capital-intensive decision. Under-specifying the equipment inevitably leads to frustrating testing bottlenecks. You end up halting development because the hardware cannot keep pace. Conversely, over-specifying wastes valuable budget on unnecessary capabilities you will never use. Unfortunately, standard datasheet metrics often obscure real-world dynamic behavior. You cannot rely on static numbers alone. This becomes especially critical as motor RPMs and torque densities rapidly increase. Engineers need transparent metrics to make informed procurement decisions.
This guide provides a rigorous, engineering-focused framework. We will help you evaluate motor dynamometer test system performance far beyond the sales brochure. By following these steps, you will ensure the chosen equipment aligns seamlessly with specific R&D, durability, or End-of-Line (EOL) testing requirements. You will walk away ready to validate peak limits, assess software determinism, and avoid common procurement pitfalls.
Align architecture with application: R&D requires high dynamic response and four-quadrant flexibility; EOL prioritizes throughput and automation.
Scrutinize dynamic capabilities, not just peak limits: A high-speed dynamometer must be evaluated on torque ripple, rotor inertia matching, and transient response times.
Software is the bottleneck: High-fidelity mechanical hardware is useless without deterministic control systems and high-speed data acquisition (DAQ).
Factor in hidden facility costs: Power regeneration capabilities, cooling infrastructure, and vibration isolation.
Before examining technical specifications, you must clearly define your primary application. A system built for intricate R&D behaves very differently from one designed for mass production. You must establish these baseline requirements early.
Characterization and R&D facilities demand extreme precision. Engineers rely on these setups for complex thermal mapping and performance benchmarking. They need sensors capable of capturing minute fluctuations in efficiency. In contrast, Production or End-of-Line (EOL) environments prioritize raw speed. They require rapid cycle times and automated pass/fail logic. You cannot easily swap equipment between these two distinct domains. An R&D setup will slow down a production line, while an EOL setup lacks the fidelity required for advanced engineering analysis.
Next, map out the exact duty cycles you need to simulate. A motor test bench handling static load testing requires vastly different hardware than one performing highly dynamic drive cycle simulations. Standard continuous loads primarily test thermal limits. Dynamic profiles, however, test inverter response and mechanical integrity under rapid acceleration. You must document these exact profiles before contacting vendors. Include maximum acceleration rates and expected deceleration curves.
Establish measurable ROI metrics early in the procurement process. You should set these targets before evaluating any specific vendor quotes. Consider metrics like reduced test cycle times or lower facility energy consumption. Modern regenerative drives easily lower overall energy usage. Also, define specific measurement uncertainty thresholds. These criteria keep your evaluation objective and focused. They prevent sales teams from distracting you with irrelevant features.

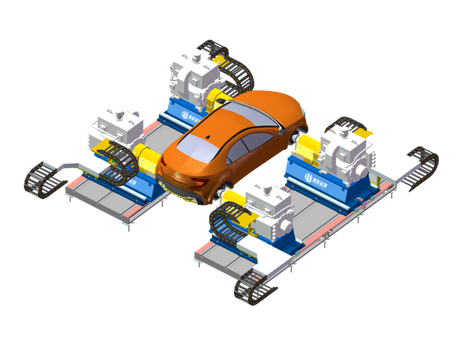

Mechanical hardware dictates the fundamental limits of your testing capabilities. You must look past top-line marketing numbers to understand how the system performs under stress.
Evaluate continuous versus peak torque ratings across the entire RPM range. Motors behave differently at base speed compared to maximum speed. Field weakening regions often expose underlying dynamometer limitations. You need to know exactly how long the system can sustain peak torque before thermal protections trigger.
Red Flag: Be wary of vendors quoting peak torque and maximum speed simultaneously. They often fail to provide the specific torque-speed curve. This omission usually obscures base speed limitations. Always demand a complete, continuous torque curve mapping the entire operational range.
The mechanical inertia of the dyno must closely match the device under test (DUT). If they mismatch significantly, you risk severe mechanical resonance. Large inertia imbalances mask the true dynamic behavior of the DUT. You will end up recording the dynamometer's sluggishness rather than the motor's agility. Always assess the step-response time of the torque actuator. Microsecond response times ensure accurate transient simulations.
Modern EV motors act as both motors and generators. Verify the system's ability to seamlessly transition between motoring and generating. It must perform this transition in both rotational directions. This four-quadrant flexibility is strictly critical for accurate regenerative braking evaluation. Without it, you cannot accurately simulate real-world driving conditions.
Differentiate carefully between inline torque transducers and reaction cradle systems. Inline sensors typically offer higher bandwidth and faster response times. Reaction cradles provide excellent steady-state accuracy but struggle during rapid transients. Look for verifiable calibration procedures. You should also evaluate parasitic losses. Bearing friction and windage corrupt torque readings at high speeds, skewing your final efficiency data.
Feature | Inline Torque Transducers | Reaction Cradle Systems |
|---|---|---|
Dynamic Response | Excellent (High Bandwidth) | Poor (High Inertia) |
Calibration | Requires shaft removal | In-situ lever arm calibration |
Parasitic Losses | Minimal impact on readings | Highly affected by trunnion bearings |
Best Application | Dynamic drive cycles, R&D | Steady-state, heavy-duty endurance |
High-fidelity mechanical hardware remains essentially useless without equally capable software. The control system often serves as the primary bottleneck in modern test setups.
High-speed testing requires microsecond-level control loop updates. Standard Ethernet communication introduces too much latency. You must use protocols like EtherCAT or deterministic real-time operating systems (RTOS). These technologies prevent control instability during rapid transient testing. Your controller must process data faster than the mechanical system can physically react. Otherwise, the test bench will oscillate out of control.
Evaluate the software's ability to automate complex test schedules. Thermal derating tests, for example, often span many uninterrupted hours. You need software capable of executing these sequences without manual intervention.
Evidence Check: Ask vendors for live demonstrations of their API. Check their integration capabilities with third-party tools. They should easily connect with MATLAB/Simulink, CAN, CAN FD, or LIN networks. A closed software ecosystem severely limits your future testing capabilities. Open architectures allow you to adapt as testing standards evolve.
Ensure the power analyzer, torque signals, speed signals, and thermal data remain perfectly time-aligned. Data streams often arrive at varying sample rates. If the DAQ system cannot synchronize these inputs accurately, your results lose all credibility. Misaligned data completely invalidates efficiency map generation. You cannot calculate accurate powertrain efficiency if torque measurements lag behind electrical power measurements.
Here are the critical DAQ features you should verify:
Hardware-based timestamping for all incoming sensor signals.
Native support for high-frequency electrical power analysis.
Automated raw data export capabilities to standard formats like ASAM ODS.
Real-time limit monitoring configured to trigger emergency shutdowns instantly.

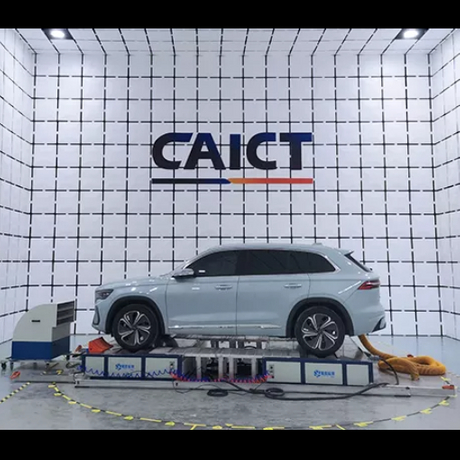

A world-class dynamometer provides zero value if your facility cannot safely house it. Infrastructure requirements often dictate the ultimate success of the entire installation.
Modern test beds consume massive amounts of electricity during full-load testing. However, active front-end (AFE) drives can return up to 90% of absorbed power back to the facility grid. Evaluate the electrical infrastructure required to support this regeneration. Ensure your local grid allows bi-directional power flow. You may need to upgrade facility transformers to handle the transient power spikes generated during heavy regenerative braking simulations.
High-speed rotor failures act like explosive events. You must scrutinize the vendor’s mechanical shielding carefully. Demand certified burst containment ratings for the test chamber. Furthermore, ensure the system includes redundant vibration monitoring. These sensors must connect directly to hardware shut-off interlocks. If a shaft misaligns at 20,000 RPM, the system must shut down in milliseconds to prevent catastrophic damage.
High-RPM testing generates severe noise, vibration, and harshness (NVH). Evaluate whether the system requires isolated seismic mass foundations. Pouring specialized concrete pits requires significant facility downtime. Some advanced systems utilize active vibration dampening instead. Active dampening reduces the need for expensive structural modifications, keeping the overall footprint manageable.
Assess the facility demands for extensive cooling infrastructure. High-power drives and dynamometers generate substantial heat. Determine whether the equipment requires chilled water systems or standard air cooling. Chilled water offers superior thermal stability but requires significant plumbing upgrades. Drive cabinets specifically need robust climate control. If they overheat during a continuous loaded run, the test aborts prematurely.
Vendor selection requires looking closely beyond the specification sheet. You are entering a long-term engineering partnership. Treat the procurement process as an extended technical interview.
Demand concrete evidence of identical systems operating successfully in the field. Ask for data showing the system running at similar speeds and torques. Reject purely theoretical models or simulated performance charts. If a vendor cannot point to a successful installation matching your specific load profile, consider another partner. Real-world validation proves their engineering competence.
A test bench becomes a massive liability if it requires flying a technician internationally for routine calibration. You need fast, regional support to maintain uptime. Assess the vendor's service level agreement (SLA) commitments carefully. Verify they maintain local spare parts inventories. Ensure they employ certified calibration engineers within your region.
Technology evolves rapidly in the electric motor sector. Can the test bed accommodate higher voltage architectures in the future? Modern EV platforms already push 800V and 1000V DC boundaries. Ensure the DC emulators can scale accordingly. Ask if the mechanical frame can support faster motors in the next five years without requiring a complete mechanical overhaul. Modular systems offer far better longevity than fixed, monolithic designs.
Evaluating test equipment requires a highly holistic approach. Do not base your procurement decisions on top-line specifications alone. A successful acquisition perfectly balances mechanical fidelity, software determinism, and facility readiness. If any of these three pillars fail, the entire testing program suffers. High continuous torque means little without fast control loops. Fast control loops mean nothing if the facility cannot cool the equipment properly.
Before approaching vendors for quotes, take one final step. Draft a comprehensive Statement of Requirements (SOR). This document must include your exact dynamic performance expectations, load profiles, and facility constraints. A detailed SOR forces vendors to bid accurately. It eliminates costly assumptions and prevents scope creep. By applying this rigorous evaluation framework, you secure a testing platform ready for both current demands and future innovations.
A: Eddy current dynamometers are cost-effective and provide excellent high-speed braking capabilities. However, they only absorb power. AC dynamometers utilize active drives, enabling true four-quadrant operation. This allows them to both drive and absorb loads in either rotational direction. For modern EV testing involving regenerative braking, AC dynamometers are absolutely essential.
A: Torque ripple introduces high-frequency mechanical vibrations into the driveline. If the dynamometer cannot dampen or measure these rapid fluctuations accurately, it triggers severe mechanical resonance. This resonance corrupts torque readings and misaligns the mechanical data with electrical inputs. Ultimately, unmitigated torque ripple severely degrades the accuracy of your electrical efficiency measurements.
A: Technically yes, but we highly discourage it. A large dynamometer sized for traction motors possesses massive rotor inertia. This inertia easily overwhelms the dynamic behavior of a small auxiliary motor. Furthermore, torque sensors scaled for high loads offer poor resolution at low loads. Accurate testing requires inertia and sensor scaling closely matched to the specific motor.
A: You should expect a lead time of 6 to 12 months. These systems require significant engineering customization to match specific shaft heights, inertia requirements, and facility layouts. Supply chain availability for high-precision torque transducers also influences the timeline. Always finalize your facility infrastructure while the equipment is being manufactured.
